Work with a complex model - Smets and Wouters (2003)
This tutorial is intended to show more advanced features of the package which come into play with more complex models. The tutorial will walk through the same steps as for the simple RBC model but will use the nonlinear Smets and Wouters (2003) model instead. Prior knowledge of DSGE models and their solution in practical terms (e.g. having used a mod file with dynare) is useful in understanding this tutorial.
Define the model
The first step is always to name the model and write down the equations. For the Smets and Wouters (2003) model this would go as follows:
julia> using MacroModellingjulia> @model Smets_Wouters_2003 begin -q[0] + beta * ((1 - tau) * q[1] + epsilon_b[1] * (r_k[1] * z[1] - psi^-1 * r_k[ss] * (-1 + exp(psi * (-1 + z[1])))) * (C[1] - h * C[0])^(-sigma_c)) -q_f[0] + beta * ((1 - tau) * q_f[1] + epsilon_b[1] * (r_k_f[1] * z_f[1] - psi^-1 * r_k_f[ss] * (-1 + exp(psi * (-1 + z_f[1])))) * (C_f[1] - h * C_f[0])^(-sigma_c)) -r_k[0] + alpha * epsilon_a[0] * mc[0] * L[0]^(1 - alpha) * (K[-1] * z[0])^(-1 + alpha) -r_k_f[0] + alpha * epsilon_a[0] * mc_f[0] * L_f[0]^(1 - alpha) * (K_f[-1] * z_f[0])^(-1 + alpha) -G[0] + T[0] -G[0] + G_bar * epsilon_G[0] -G_f[0] + T_f[0] -G_f[0] + G_bar * epsilon_G[0] -L[0] + nu_w[0]^-1 * L_s[0] -L_s_f[0] + L_f[0] * (W_i_f[0] * W_f[0]^-1)^(lambda_w^-1 * (-1 - lambda_w)) L_s_f[0] - L_f[0] L_s_f[0] + lambda_w^-1 * L_f[0] * W_f[0]^-1 * (-1 - lambda_w) * (-W_disutil_f[0] + W_i_f[0]) * (W_i_f[0] * W_f[0]^-1)^(-1 + lambda_w^-1 * (-1 - lambda_w)) Pi_ws_f[0] - L_s_f[0] * (-W_disutil_f[0] + W_i_f[0]) Pi_ps_f[0] - Y_f[0] * (-mc_f[0] + P_j_f[0]) * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) -Q[0] + epsilon_b[0]^-1 * q[0] * (C[0] - h * C[-1])^(sigma_c) -Q_f[0] + epsilon_b[0]^-1 * q_f[0] * (C_f[0] - h * C_f[-1])^(sigma_c) -W[0] + epsilon_a[0] * mc[0] * (1 - alpha) * L[0]^(-alpha) * (K[-1] * z[0])^alpha -W_f[0] + epsilon_a[0] * mc_f[0] * (1 - alpha) * L_f[0]^(-alpha) * (K_f[-1] * z_f[0])^alpha -Y_f[0] + Y_s_f[0] Y_s[0] - nu_p[0] * Y[0] -Y_s_f[0] + Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) beta * epsilon_b[1] * (C_f[1] - h * C_f[0])^(-sigma_c) - epsilon_b[0] * R_f[0]^-1 * (C_f[0] - h * C_f[-1])^(-sigma_c) beta * epsilon_b[1] * pi[1]^-1 * (C[1] - h * C[0])^(-sigma_c) - epsilon_b[0] * R[0]^-1 * (C[0] - h * C[-1])^(-sigma_c) Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) - lambda_p^-1 * Y_f[0] * (1 + lambda_p) * (-mc_f[0] + P_j_f[0]) * P_j_f[0]^(-1 - lambda_p^-1 * (1 + lambda_p)) epsilon_b[0] * W_disutil_f[0] * (C_f[0] - h * C_f[-1])^(-sigma_c) - omega * epsilon_b[0] * epsilon_L[0] * L_s_f[0]^sigma_l -1 + xi_p * (pi[0]^-1 * pi[-1]^gamma_p)^(-lambda_p^-1) + (1 - xi_p) * pi_star[0]^(-lambda_p^-1) -1 + (1 - xi_w) * (w_star[0] * W[0]^-1)^(-lambda_w^-1) + xi_w * (W[-1] * W[0]^-1)^(-lambda_w^-1) * (pi[0]^-1 * pi[-1]^gamma_w)^(-lambda_w^-1) -Phi - Y_s[0] + epsilon_a[0] * L[0]^(1 - alpha) * (K[-1] * z[0])^alpha -Phi - Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) + epsilon_a[0] * L_f[0]^(1 - alpha) * (K_f[-1] * z_f[0])^alpha std_eta_b * eta_b[x] - log(epsilon_b[0]) + rho_b * log(epsilon_b[-1]) -std_eta_L * eta_L[x] - log(epsilon_L[0]) + rho_L * log(epsilon_L[-1]) std_eta_I * eta_I[x] - log(epsilon_I[0]) + rho_I * log(epsilon_I[-1]) std_eta_w * eta_w[x] - f_1[0] + f_2[0] std_eta_a * eta_a[x] - log(epsilon_a[0]) + rho_a * log(epsilon_a[-1]) std_eta_p * eta_p[x] - g_1[0] + g_2[0] * (1 + lambda_p) std_eta_G * eta_G[x] - log(epsilon_G[0]) + rho_G * log(epsilon_G[-1]) -f_1[0] + beta * xi_w * f_1[1] * (w_star[0]^-1 * w_star[1])^(lambda_w^-1) * (pi[1]^-1 * pi[0]^gamma_w)^(-lambda_w^-1) + epsilon_b[0] * w_star[0] * L[0] * (1 + lambda_w)^-1 * (C[0] - h * C[-1])^(-sigma_c) * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)) -f_2[0] + beta * xi_w * f_2[1] * (w_star[0]^-1 * w_star[1])^(lambda_w^-1 * (1 + lambda_w) * (1 + sigma_l)) * (pi[1]^-1 * pi[0]^gamma_w)^(-lambda_w^-1 * (1 + lambda_w) * (1 + sigma_l)) + omega * epsilon_b[0] * epsilon_L[0] * (L[0] * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)))^(1 + sigma_l) -g_1[0] + beta * xi_p * pi_star[0] * g_1[1] * pi_star[1]^-1 * (pi[1]^-1 * pi[0]^gamma_p)^(-lambda_p^-1) + epsilon_b[0] * pi_star[0] * Y[0] * (C[0] - h * C[-1])^(-sigma_c) -g_2[0] + beta * xi_p * g_2[1] * (pi[1]^-1 * pi[0]^gamma_p)^(-lambda_p^-1 * (1 + lambda_p)) + epsilon_b[0] * mc[0] * Y[0] * (C[0] - h * C[-1])^(-sigma_c) -nu_w[0] + (1 - xi_w) * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)) + xi_w * nu_w[-1] * (W[-1] * pi[0]^-1 * W[0]^-1 * pi[-1]^gamma_w)^(-lambda_w^-1 * (1 + lambda_w)) -nu_p[0] + (1 - xi_p) * pi_star[0]^(-lambda_p^-1 * (1 + lambda_p)) + xi_p * nu_p[-1] * (pi[0]^-1 * pi[-1]^gamma_p)^(-lambda_p^-1 * (1 + lambda_p)) -K[0] + K[-1] * (1 - tau) + I[0] * (1 - 0.5 * varphi * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])^2) -K_f[0] + K_f[-1] * (1 - tau) + I_f[0] * (1 - 0.5 * varphi * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])^2) U[0] - beta * U[1] - epsilon_b[0] * ((1 - sigma_c)^-1 * (C[0] - h * C[-1])^(1 - sigma_c) - omega * epsilon_L[0] * (1 + sigma_l)^-1 * L_s[0]^(1 + sigma_l)) U_f[0] - beta * U_f[1] - epsilon_b[0] * ((1 - sigma_c)^-1 * (C_f[0] - h * C_f[-1])^(1 - sigma_c) - omega * epsilon_L[0] * (1 + sigma_l)^-1 * L_s_f[0]^(1 + sigma_l)) -epsilon_b[0] * (C[0] - h * C[-1])^(-sigma_c) + q[0] * (1 - 0.5 * varphi * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])^2 - varphi * I[-1]^-1 * epsilon_I[0] * I[0] * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])) + beta * varphi * I[0]^-2 * epsilon_I[1] * q[1] * I[1]^2 * (-1 + I[0]^-1 * epsilon_I[1] * I[1]) -epsilon_b[0] * (C_f[0] - h * C_f[-1])^(-sigma_c) + q_f[0] * (1 - 0.5 * varphi * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])^2 - varphi * I_f[-1]^-1 * epsilon_I[0] * I_f[0] * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])) + beta * varphi * I_f[0]^-2 * epsilon_I[1] * q_f[1] * I_f[1]^2 * (-1 + I_f[0]^-1 * epsilon_I[1] * I_f[1]) std_eta_pi * eta_pi[x] - log(pi_obj[0]) + rho_pi_bar * log(pi_obj[-1]) + log(calibr_pi_obj) * (1 - rho_pi_bar) -C[0] - I[0] - T[0] + Y[0] - psi^-1 * r_k[ss] * K[-1] * (-1 + exp(psi * (-1 + z[0]))) -calibr_pi + std_eta_R * eta_R[x] - log(R[ss]^-1 * R[0]) + r_Delta_pi * (-log(pi[ss]^-1 * pi[-1]) + log(pi[ss]^-1 * pi[0])) + r_Delta_y * (-log(Y[ss]^-1 * Y[-1]) + log(Y[ss]^-1 * Y[0]) + log(Y_f[ss]^-1 * Y_f[-1]) - log(Y_f[ss]^-1 * Y_f[0])) + rho * log(R[ss]^-1 * R[-1]) + (1 - rho) * (log(pi_obj[0]) + r_pi * (-log(pi_obj[0]) + log(pi[ss]^-1 * pi[-1])) + r_Y * (log(Y[ss]^-1 * Y[0]) - log(Y_f[ss]^-1 * Y_f[0]))) -C_f[0] - I_f[0] + Pi_ws_f[0] - T_f[0] + Y_f[0] + L_s_f[0] * W_disutil_f[0] - L_f[0] * W_f[0] - psi^-1 * r_k_f[ss] * K_f[-1] * (-1 + exp(psi * (-1 + z_f[0]))) epsilon_b[0] * (K[-1] * r_k[0] - r_k[ss] * K[-1] * exp(psi * (-1 + z[0]))) * (C[0] - h * C[-1])^(-sigma_c) epsilon_b[0] * (K_f[-1] * r_k_f[0] - r_k_f[ss] * K_f[-1] * exp(psi * (-1 + z_f[0]))) * (C_f[0] - h * C_f[-1])^(-sigma_c) endModel: Smets_Wouters_2003 Variables Total: 54 Auxiliary: 0 States: 19 Auxiliary: 0 Jumpers: 21 Auxiliary: 0 Shocks: 9 Parameters: 39
First, the package is loaded and then the @model macro is used to define the model. The first argument after @model is the model name and will be the name of the object in the global environment containing all information regarding the model. The second argument to the macro are the equations, which are written down between begin and end. Equations can contain an equality sign or the expression is assumed to equal 0. Equations cannot span multiple lines (unless the expression is wrapped in brackets) and the timing of endogenous variables are expressed in the square brackets following the variable name (e.g. [-1] for the past period). Exogenous variables (shocks) are followed by a keyword in square brackets indicating them being exogenous (in this case [x]). In this example there are also variables in the non-stochastic steady state denoted by [ss]. Note that names can leverage julia's unicode capabilities (alpha can be written as α).
Define the parameters
Next the parameters of the model need to be added. The macro @parameters takes care of this:
julia> @parameters Smets_Wouters_2003 begin lambda_p = .368 G_bar = .362 lambda_w = 0.5 Phi = .819 alpha = 0.3 beta = 0.99 gamma_w = 0.763 gamma_p = 0.469 h = 0.573 omega = 1 psi = 0.169 r_pi = 1.684 r_Y = 0.099 r_Delta_pi = 0.14 r_Delta_y = 0.159 sigma_c = 1.353 sigma_l = 2.4 tau = 0.025 varphi = 6.771 xi_w = 0.737 xi_p = 0.908 rho = 0.961 rho_b = 0.855 rho_L = 0.889 rho_I = 0.927 rho_a = 0.823 rho_G = 0.949 rho_pi_bar = 0.924 std_eta_b = 0.336 std_eta_L = 3.52 std_eta_I = 0.085 std_eta_a = 0.598 std_eta_w = 0.6853261 std_eta_p = 0.7896512 std_eta_G = 0.325 std_eta_R = 0.081 std_eta_pi = 0.017 calibr_pi_obj | 1 = pi_obj[ss] calibr_pi | pi[ss] = pi_obj[ss] endRemove redundant variables in non-stochastic steady state problem: 4.948 seconds Set up non-stochastic steady state problem: 4.61 seconds Find non-stochastic steady state: 3.298 seconds Take symbolic derivatives up to first order: 3.641 seconds Model: Smets_Wouters_2003 Variables Total: 54 Auxiliary: 0 States: 19 Auxiliary: 0 Jumpers: 21 Auxiliary: 0 Shocks: 9 Parameters: 39 Calibration equations: 2
The block defining the parameters above has two different inputs.
First, there are simple parameter definition the same way values are assigned (e.g. Phi = .819).
Second, there are calibration equations where the value of a parameter is treated as unknown (e.g. calibr_pi_obj) and an additional equation is required to hold (e.g. 1 = pi_obj[ss]). The additional equation can contain variables in SS or parameters. Putting it together a calibration equation is defined by the unknown parameter, and the calibration equation, separated by | (e.g. calibr_pi_obj | 1 = pi_obj[ss] and also 1 = pi_obj[ss] | calibr_pi_obj).
Note that one parameter definition per line is required.
Given the equations and parameters, the package will first attempt to solve the system of nonlinear equations symbolically (including possible calibration equations). If an analytical solution is not possible, numerical solution methods are used to try and solve it. There is no guarantee that a solution can be found, but it is highly likely, given that a solution exists. The problem setup tries to incorporate parts of the structure of the problem, e.g. bounds on variables: if one equation contains log(k) it must be that k > 0. Nonetheless, the user can also provide useful information such as variable bounds or initial guesses. Bounds can be set by adding another expression to the parameter block e.g.: c > 0. Large values are typically a problem for numerical solvers. Therefore, providing a guess for these values will increase the speed of the solver. Guesses can be provided as a Dict after the model name and before the parameter definitions block, e.g.: @parameters Smets_Wouters_2003 guess = Dict(k => 10) begin ... end.
Delayed parameter definition
Not all parameters need to be defined in the @parameters macro. Calibration equations (using the | syntax) and parameters defined as functions of other parameters must be declared here, but simple parameter value assignments (e.g., α = 0.5) can be deferred and provided later by passing them to any function that accepts the parameters argument (e.g., get_irf, get_steady_state, simulate).
Parameter ordering: When some parameters are not defined upfront, the parameter vector is ordered as follows: declared parameters come first (in their declaration order), followed by missing parameters (in alphabetical order). This matters when passing parameter values by position rather than by name.
The example above with delayed parameter definition would work as follows. The model is defined as before:
julia> using MacroModellingjulia> @model Smets_Wouters_2003_incomplete begin -q[0] + beta * ((1 - tau) * q[1] + epsilon_b[1] * (r_k[1] * z[1] - psi^-1 * r_k[ss] * (-1 + exp(psi * (-1 + z[1])))) * (C[1] - h * C[0])^(-sigma_c)) -q_f[0] + beta * ((1 - tau) * q_f[1] + epsilon_b[1] * (r_k_f[1] * z_f[1] - psi^-1 * r_k_f[ss] * (-1 + exp(psi * (-1 + z_f[1])))) * (C_f[1] - h * C_f[0])^(-sigma_c)) -r_k[0] + alpha * epsilon_a[0] * mc[0] * L[0]^(1 - alpha) * (K[-1] * z[0])^(-1 + alpha) -r_k_f[0] + alpha * epsilon_a[0] * mc_f[0] * L_f[0]^(1 - alpha) * (K_f[-1] * z_f[0])^(-1 + alpha) -G[0] + T[0] -G[0] + G_bar * epsilon_G[0] -G_f[0] + T_f[0] -G_f[0] + G_bar * epsilon_G[0] -L[0] + nu_w[0]^-1 * L_s[0] -L_s_f[0] + L_f[0] * (W_i_f[0] * W_f[0]^-1)^(lambda_w^-1 * (-1 - lambda_w)) L_s_f[0] - L_f[0] L_s_f[0] + lambda_w^-1 * L_f[0] * W_f[0]^-1 * (-1 - lambda_w) * (-W_disutil_f[0] + W_i_f[0]) * (W_i_f[0] * W_f[0]^-1)^(-1 + lambda_w^-1 * (-1 - lambda_w)) Pi_ws_f[0] - L_s_f[0] * (-W_disutil_f[0] + W_i_f[0]) Pi_ps_f[0] - Y_f[0] * (-mc_f[0] + P_j_f[0]) * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) -Q[0] + epsilon_b[0]^-1 * q[0] * (C[0] - h * C[-1])^(sigma_c) -Q_f[0] + epsilon_b[0]^-1 * q_f[0] * (C_f[0] - h * C_f[-1])^(sigma_c) -W[0] + epsilon_a[0] * mc[0] * (1 - alpha) * L[0]^(-alpha) * (K[-1] * z[0])^alpha -W_f[0] + epsilon_a[0] * mc_f[0] * (1 - alpha) * L_f[0]^(-alpha) * (K_f[-1] * z_f[0])^alpha -Y_f[0] + Y_s_f[0] Y_s[0] - nu_p[0] * Y[0] -Y_s_f[0] + Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) beta * epsilon_b[1] * (C_f[1] - h * C_f[0])^(-sigma_c) - epsilon_b[0] * R_f[0]^-1 * (C_f[0] - h * C_f[-1])^(-sigma_c) beta * epsilon_b[1] * pi[1]^-1 * (C[1] - h * C[0])^(-sigma_c) - epsilon_b[0] * R[0]^-1 * (C[0] - h * C[-1])^(-sigma_c) Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) - lambda_p^-1 * Y_f[0] * (1 + lambda_p) * (-mc_f[0] + P_j_f[0]) * P_j_f[0]^(-1 - lambda_p^-1 * (1 + lambda_p)) epsilon_b[0] * W_disutil_f[0] * (C_f[0] - h * C_f[-1])^(-sigma_c) - omega * epsilon_b[0] * epsilon_L[0] * L_s_f[0]^sigma_l -1 + xi_p * (pi[0]^-1 * pi[-1]^gamma_p)^(-lambda_p^-1) + (1 - xi_p) * pi_star[0]^(-lambda_p^-1) -1 + (1 - xi_w) * (w_star[0] * W[0]^-1)^(-lambda_w^-1) + xi_w * (W[-1] * W[0]^-1)^(-lambda_w^-1) * (pi[0]^-1 * pi[-1]^gamma_w)^(-lambda_w^-1) -Phi - Y_s[0] + epsilon_a[0] * L[0]^(1 - alpha) * (K[-1] * z[0])^alpha -Phi - Y_f[0] * P_j_f[0]^(-lambda_p^-1 * (1 + lambda_p)) + epsilon_a[0] * L_f[0]^(1 - alpha) * (K_f[-1] * z_f[0])^alpha std_eta_b * eta_b[x] - log(epsilon_b[0]) + rho_b * log(epsilon_b[-1]) -std_eta_L * eta_L[x] - log(epsilon_L[0]) + rho_L * log(epsilon_L[-1]) std_eta_I * eta_I[x] - log(epsilon_I[0]) + rho_I * log(epsilon_I[-1]) std_eta_w * eta_w[x] - f_1[0] + f_2[0] std_eta_a * eta_a[x] - log(epsilon_a[0]) + rho_a * log(epsilon_a[-1]) std_eta_p * eta_p[x] - g_1[0] + g_2[0] * (1 + lambda_p) std_eta_G * eta_G[x] - log(epsilon_G[0]) + rho_G * log(epsilon_G[-1]) -f_1[0] + beta * xi_w * f_1[1] * (w_star[0]^-1 * w_star[1])^(lambda_w^-1) * (pi[1]^-1 * pi[0]^gamma_w)^(-lambda_w^-1) + epsilon_b[0] * w_star[0] * L[0] * (1 + lambda_w)^-1 * (C[0] - h * C[-1])^(-sigma_c) * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)) -f_2[0] + beta * xi_w * f_2[1] * (w_star[0]^-1 * w_star[1])^(lambda_w^-1 * (1 + lambda_w) * (1 + sigma_l)) * (pi[1]^-1 * pi[0]^gamma_w)^(-lambda_w^-1 * (1 + lambda_w) * (1 + sigma_l)) + omega * epsilon_b[0] * epsilon_L[0] * (L[0] * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)))^(1 + sigma_l) -g_1[0] + beta * xi_p * pi_star[0] * g_1[1] * pi_star[1]^-1 * (pi[1]^-1 * pi[0]^gamma_p)^(-lambda_p^-1) + epsilon_b[0] * pi_star[0] * Y[0] * (C[0] - h * C[-1])^(-sigma_c) -g_2[0] + beta * xi_p * g_2[1] * (pi[1]^-1 * pi[0]^gamma_p)^(-lambda_p^-1 * (1 + lambda_p)) + epsilon_b[0] * mc[0] * Y[0] * (C[0] - h * C[-1])^(-sigma_c) -nu_w[0] + (1 - xi_w) * (w_star[0] * W[0]^-1)^(-lambda_w^-1 * (1 + lambda_w)) + xi_w * nu_w[-1] * (W[-1] * pi[0]^-1 * W[0]^-1 * pi[-1]^gamma_w)^(-lambda_w^-1 * (1 + lambda_w)) -nu_p[0] + (1 - xi_p) * pi_star[0]^(-lambda_p^-1 * (1 + lambda_p)) + xi_p * nu_p[-1] * (pi[0]^-1 * pi[-1]^gamma_p)^(-lambda_p^-1 * (1 + lambda_p)) -K[0] + K[-1] * (1 - tau) + I[0] * (1 - 0.5 * varphi * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])^2) -K_f[0] + K_f[-1] * (1 - tau) + I_f[0] * (1 - 0.5 * varphi * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])^2) U[0] - beta * U[1] - epsilon_b[0] * ((1 - sigma_c)^-1 * (C[0] - h * C[-1])^(1 - sigma_c) - omega * epsilon_L[0] * (1 + sigma_l)^-1 * L_s[0]^(1 + sigma_l)) U_f[0] - beta * U_f[1] - epsilon_b[0] * ((1 - sigma_c)^-1 * (C_f[0] - h * C_f[-1])^(1 - sigma_c) - omega * epsilon_L[0] * (1 + sigma_l)^-1 * L_s_f[0]^(1 + sigma_l)) -epsilon_b[0] * (C[0] - h * C[-1])^(-sigma_c) + q[0] * (1 - 0.5 * varphi * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])^2 - varphi * I[-1]^-1 * epsilon_I[0] * I[0] * (-1 + I[-1]^-1 * epsilon_I[0] * I[0])) + beta * varphi * I[0]^-2 * epsilon_I[1] * q[1] * I[1]^2 * (-1 + I[0]^-1 * epsilon_I[1] * I[1]) -epsilon_b[0] * (C_f[0] - h * C_f[-1])^(-sigma_c) + q_f[0] * (1 - 0.5 * varphi * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])^2 - varphi * I_f[-1]^-1 * epsilon_I[0] * I_f[0] * (-1 + I_f[-1]^-1 * epsilon_I[0] * I_f[0])) + beta * varphi * I_f[0]^-2 * epsilon_I[1] * q_f[1] * I_f[1]^2 * (-1 + I_f[0]^-1 * epsilon_I[1] * I_f[1]) std_eta_pi * eta_pi[x] - log(pi_obj[0]) + rho_pi_bar * log(pi_obj[-1]) + log(calibr_pi_obj) * (1 - rho_pi_bar) -C[0] - I[0] - T[0] + Y[0] - psi^-1 * r_k[ss] * K[-1] * (-1 + exp(psi * (-1 + z[0]))) -calibr_pi + std_eta_R * eta_R[x] - log(R[ss]^-1 * R[0]) + r_Delta_pi * (-log(pi[ss]^-1 * pi[-1]) + log(pi[ss]^-1 * pi[0])) + r_Delta_y * (-log(Y[ss]^-1 * Y[-1]) + log(Y[ss]^-1 * Y[0]) + log(Y_f[ss]^-1 * Y_f[-1]) - log(Y_f[ss]^-1 * Y_f[0])) + rho * log(R[ss]^-1 * R[-1]) + (1 - rho) * (log(pi_obj[0]) + r_pi * (-log(pi_obj[0]) + log(pi[ss]^-1 * pi[-1])) + r_Y * (log(Y[ss]^-1 * Y[0]) - log(Y_f[ss]^-1 * Y_f[0]))) -C_f[0] - I_f[0] + Pi_ws_f[0] - T_f[0] + Y_f[0] + L_s_f[0] * W_disutil_f[0] - L_f[0] * W_f[0] - psi^-1 * r_k_f[ss] * K_f[-1] * (-1 + exp(psi * (-1 + z_f[0]))) epsilon_b[0] * (K[-1] * r_k[0] - r_k[ss] * K[-1] * exp(psi * (-1 + z[0]))) * (C[0] - h * C[-1])^(-sigma_c) epsilon_b[0] * (K_f[-1] * r_k_f[0] - r_k_f[ss] * K_f[-1] * exp(psi * (-1 + z_f[0]))) * (C_f[0] - h * C_f[-1])^(-sigma_c) endModel: Smets_Wouters_2003_incomplete Variables Total: 54 Auxiliary: 0 States: 19 Auxiliary: 0 Jumpers: 21 Auxiliary: 0 Shocks: 9 Parameters: 39
but in the parameter definition only the calibration equations and parameters defined as functions of other parameters are defined, so in this case we have two calibration equations:
julia> @parameters Smets_Wouters_2003_incomplete begin calibr_pi_obj | 1 = pi_obj[ss] calibr_pi | pi[ss] = pi_obj[ss] end┌ Warning: Model has been set up with incomplete parameter definitions. Missing parameters: Any[:G_bar, :Phi, :alpha, :beta, :gamma_p, :gamma_w, :h, :lambda_p, :lambda_w, :omega, :psi, :r_Delta_pi, :r_Delta_y, :r_Y, :r_pi, :rho, :rho_G, :rho_I, :rho_L, :rho_a, :rho_b, :rho_pi_bar, :sigma_c, :sigma_l, :std_eta_G, :std_eta_I, :std_eta_L, :std_eta_R, :std_eta_a, :std_eta_b, :std_eta_p, :std_eta_pi, :std_eta_w, :tau, :varphi, :xi_p, :xi_w]. The non-stochastic steady state and perturbation solution cannot be computed until all parameters are defined. Provide missing parameter values via the `parameters` keyword argument in functions like `get_irf`, `get_SS`, `simulate`, etc. └ @ Main ~/work/MacroModelling.jl/MacroModelling.jl/src/macros.jl:1610 Model: Smets_Wouters_2003_incomplete Variables Total: 54 Auxiliary: 0 States: 19 Auxiliary: 0 Jumpers: 21 Auxiliary: 0 Shocks: 9 Parameters: 39 Missing: 37 Calibration equations: 2
the package warns that the model has been set up with incomplete parameter definitions and provides the missing parameters.
We can then provide the missing parameters when calling functions that accept the parameters argument, for example to retrieve IRFs:
julia> params = [ :lambda_p => .368, :G_bar => .362, :lambda_w => 0.5, :Phi => .819, :alpha => 0.3, :beta => 0.99, :gamma_w => 0.763, :gamma_p => 0.469, :h => 0.573, :omega => 1, :psi => 0.169, :r_pi => 1.684, :r_Y => 0.099, :r_Delta_pi => 0.14, :r_Delta_y => 0.159, :sigma_c => 1.353, :sigma_l => 2.4, :tau => 0.025, :varphi => 6.771, :xi_w => 0.737, :xi_p => 0.908, :rho => 0.961, :rho_b => 0.855, :rho_L => 0.889, :rho_I => 0.927, :rho_a => 0.823, :rho_G => 0.949, :rho_pi_bar => 0.924, :std_eta_b => 0.336, :std_eta_L => 3.52, :std_eta_I => 0.085, :std_eta_a => 0.598, :std_eta_w => 0.6853261, :std_eta_p => 0.7896512, :std_eta_G => 0.325, :std_eta_R => 0.081, :std_eta_pi => 0.017, ]37-element Vector{Pair{Symbol, Float64}}: :lambda_p => 0.368 :G_bar => 0.362 :lambda_w => 0.5 :Phi => 0.819 :alpha => 0.3 :beta => 0.99 :gamma_w => 0.763 :gamma_p => 0.469 :h => 0.573 :omega => 1.0 ⋮ :std_eta_b => 0.336 :std_eta_L => 3.52 :std_eta_I => 0.085 :std_eta_a => 0.598 :std_eta_w => 0.6853261 :std_eta_p => 0.7896512 :std_eta_G => 0.325 :std_eta_R => 0.081 :std_eta_pi => 0.017julia> get_irf(Smets_Wouters_2003_incomplete, parameters = params)Remove redundant variables in non-stochastic steady state problem: 4.548 seconds Set up non-stochastic steady state problem: 1.36 seconds Find non-stochastic steady state: 2.03 seconds Take symbolic derivatives up to first order: 0.923 seconds 3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 9-element Vector{Symbol} And data, 54×40×9 Array{Float64, 3}: [showing 3 of 9 slices] [:, :, 1] ~ (:, :, :eta_G): (1) (2) … (39) (40) (:C) -0.0133742 -0.0204371 -0.011918 -0.0117755 (:C_f) -0.0320112 -0.0407958 -0.0133648 -0.0132136 (:G) 0.11765 0.11165 0.0160956 0.0152748 ⋮ ⋱ ⋮ (:r_k_f) 0.000163701 0.000117874 … 0.00020119 0.000200821 (:w_star) 0.0111119 0.0101598 -0.00225204 -0.00224756 (:z) 0.040404 0.0348715 0.0291886 0.0292194 (:z_f) 0.027596 0.0198707 0.0339156 0.0338535 [:, :, 5] ~ (:, :, :eta_a): (1) (2) … (39) (40) (:C) 0.185454 0.266366 0.0448634 0.0445393 (:C_f) 0.699595 0.807224 0.0641954 0.0635383 (:G) -4.25779e-16 -7.58798e-15 8.02499e-15 7.87848e-15 ⋮ ⋱ ⋮ (:r_k_f) 0.00206815 0.00250599 … -0.0012247 -0.00120755 (:w_star) -0.0685999 -0.0257599 0.0104469 0.00989232 (:z) -0.551529 -0.377876 -0.154075 -0.152389 (:z_f) 0.348639 0.422447 -0.206454 -0.203564 [:, :, 9] ~ (:, :, :eta_w): (1) (2) … (39) (40) (:C) -4.24362e-5 -7.53116e-5 -0.000102464 -0.000101596 (:C_f) -1.19653e-17 6.12458e-17 1.18273e-17 1.56851e-17 (:G) -6.83478e-19 6.17901e-17 -1.67797e-17 -1.61054e-17 ⋮ ⋱ ⋮ (:r_k_f) 4.61033e-20 3.14812e-18 … -1.24014e-18 -1.26325e-18 (:w_star) 0.012691 0.00165858 -8.17445e-5 -7.60783e-5 (:z) 0.00222469 0.00187724 0.000271989 0.000277738 (:z_f) 7.77187e-18 5.31295e-16 -2.08964e-16 -2.12859e-16
Note that only now that all parameters have been defined the package can attempt to solve the model. The steady state problem and derivatives are taken only once all missing parameters have been provided, as the order of the parameters follows declaration order. This functionality effectively allows to load parameter values from an external source (e.g. a CSV file) and pass them to the model without having to redefine the model.
Plot impulse response functions (IRFs)

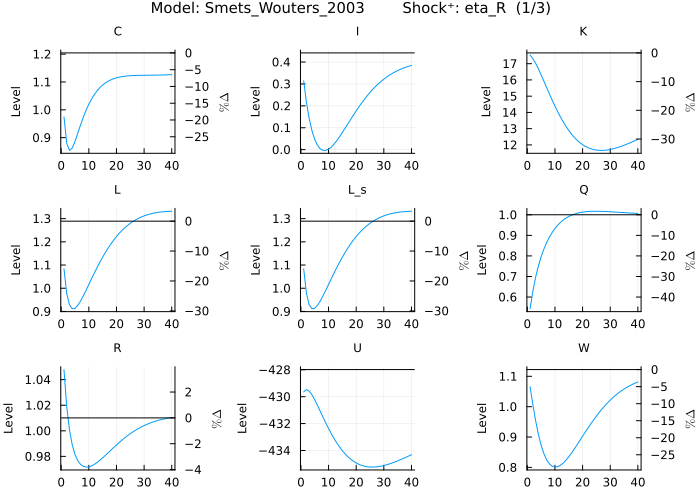

A useful output to analyse are IRFs for the exogenous shocks. Calling plot_irf (different names for the same function are also supported: plot_irfs, or plot_IRF) will take care of this. Note that the StatsPlots package needs to be imported once before the first plot. In the background the package solves (numerically in this complex case) for the non-stochastic steady state (SS) and calculates the first order perturbation solution.
julia> import StatsPlotsjulia> plot_irf(Smets_Wouters_2003)37-element Vector{Any}: Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=10} ⋮ Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=8} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=10} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=8}
When the model is solved the first time (in this case by calling plot_irf), the package breaks down the steady state problem into independent blocks and first attempts to solve them symbolically and if that fails numerically.
The plots show the responses of the endogenous variables to a one standard deviation positive (indicated by Shock⁺ in chart title) unanticipated shock. Therefore there are as many subplots as there are combinations of shocks and endogenous variables (which are impacted by the shock). Plots are composed of up to 9 subplots and the plot title shows the model name followed by the name of the shock and which plot is shown out of the plots for this shock (e.g. (1/3) means the first out of three plots for this shock). Subplots show the sorted endogenous variables with the left y-axis showing the level of the respective variable and the right y-axis showing the percent deviation from the SS (if variable is strictly positive). The horizontal black line marks the SS.
Explore other parameter values

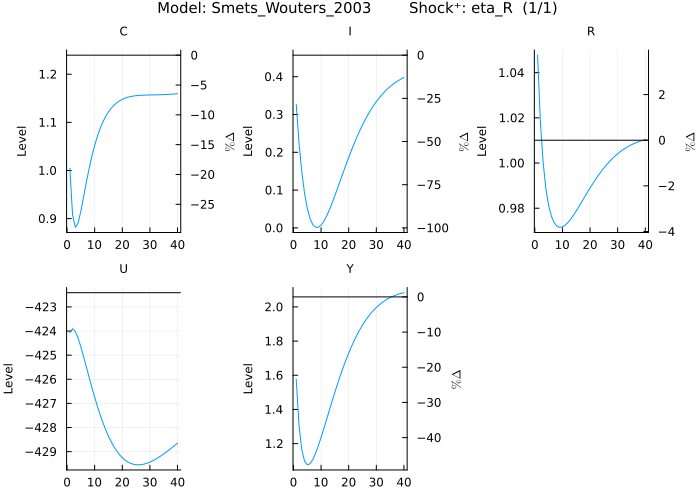

Playing around with the model can be especially insightful in the early phase of model development. The package tries to facilitate this process to the extent possible. Typically different parameter values are tried to see how the IRFs change. This can be done by using the parameters argument of the plot_irf function. Pass a Pair with the Symbol of the parameter (: in front of the parameter name) that should change and its new value to the parameter argument (e.g. :alpha => 0.305). Furthermore, the example focuses on certain shocks and variables. The eta_R shock is selected by passing it as a Symbol to the shocks argument. The variables plotted are U, Y, I, R, and C, achieved by passing the Vector of Symbols to the variables argument of the plot_irf function:
julia> plot_irf(Smets_Wouters_2003, parameters = :alpha => 0.305, variables = [:U,:Y,:I,:R,:C], shocks = :eta_R)1-element Vector{Any}: Plot{Plots.GRBackend() n=10}
First, the package finds the new steady state, solves the model dynamics around it and saves the new parameters and solution in the model object. Second, note that with the parameters the IRFs changed (e.g. compare the y-axis values for U). Updating the plot for new parameters is significantly faster than calling it the first time. This is because the first call triggers compilations of the model functions, and once compiled the user benefits from the performance of the specialised compiled code. Furthermore, finding the SS from a valid SS as a starting point is faster.
Plot model simulation

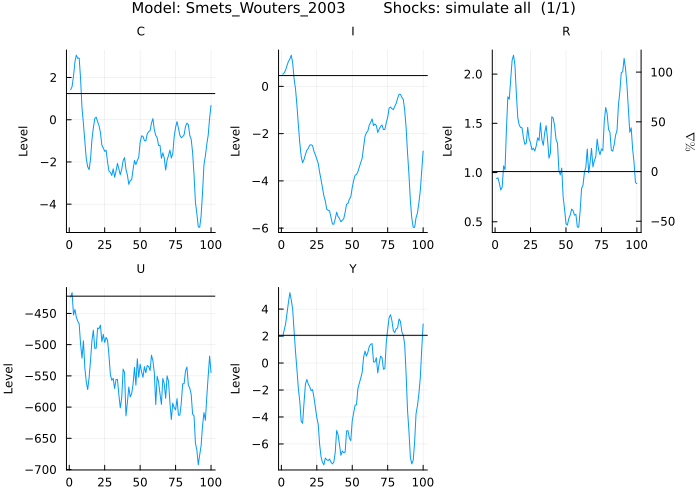

Another insightful output is simulations of the model. The plot_simulations function can be used here. Again only a subset of the variables will be examined and specified in the variables argument. Note that the StatsPlots package needs to be imported once before the first plot. To the same effect the plot_irf function can be used and in the shocks argument :simulate is specified to simulate the model and the periods argument set to 100.
julia> plot_simulations(Smets_Wouters_2003, variables = [:U,:Y,:I,:R,:C])1-element Vector{Any}: Plot{Plots.GRBackend() n=10}
The plots show the models endogenous variables in response to random draws for all exogenous shocks over 100 periods.
Plot specific series of shocks

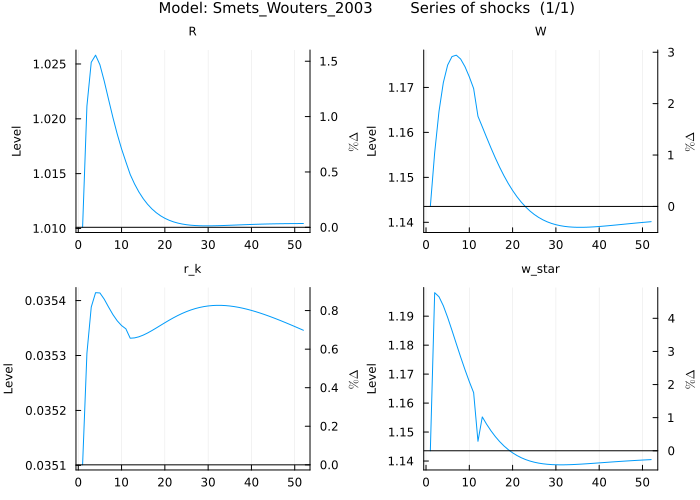

Sometimes a specific series of shocks is of interest and the corresponding responses of the endogenous variables can be examined by passing a Matrix or a KeyedArray (the KeyedArray type is provided by the AxisKeys package) of shock series to the shocks argument of the plot_irf function. For example, consider a positive 1 standard deviation shock to eta_b in period 2 and a negative 1 standard deviation shock to eta_w in period 12. This can be implemented as follows:
julia> using AxisKeysjulia> shock_series = KeyedArray(zeros(2,12), Shocks = [:eta_b, :eta_w], Periods = 1:12)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Shocks ∈ 2-element Vector{Symbol} → Periods ∈ 12-element UnitRange{Int64} And data, 2×12 Matrix{Float64}: (1) (2) (3) (4) … (9) (10) (11) (12) (:eta_b) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 (:eta_w) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0julia> shock_series[1,2] = 11julia> shock_series[2,12] = -1-1julia> plot_irf(Smets_Wouters_2003, shocks = shock_series, variables = [:W,:r_k,:w_star,:R])1-element Vector{Any}: Plot{Plots.GRBackend() n=8}
First, the KeyedArray (provided by the AxisKeys package) containing the series of shocks is constructed and passed to the shocks argument. The plot shows the paths of the selected variables for the two shocks hitting the economy in periods 2 and 12 and 40 quarters thereafter.
Model statistics
Steady state
The package solves for the SS automatically and the SS values can be seen in the plots. To see the SS values and the derivatives of the SS with respect to the model parameters get_steady_state can be called. The model has 39 parameters and 54 variables. Since not all derivatives for all parameters are of interest a subset is selected. This can be done by passing on a Vector of Symbols of the parameters to the parameter_derivatives argument:
julia> get_steady_state(Smets_Wouters_2003, parameter_derivatives = [:alpha,:beta])2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_calibrated_parameters ∈ 56-element Vector{Symbol} → Steady_state_and_∂steady_state∂parameter ∈ 3-element Vector{Symbol} And data, 56×3 Matrix{Float64}: (:Steady_state) (:alpha) (:beta) (:C) 1.23956 7.19197 14.4994 (:C_f) 1.23956 7.19197 14.4994 (:G) 0.362 -1.21304e-15 -2.42609e-15 (:G_f) 0.362 -1.21304e-15 -2.42609e-15 (:I) 0.456928 3.13855 18.5261 (:I_f) 0.456928 3.13855 18.5261 ⋮ (:r_k) 0.035101 -9.97154e-16 -1.0203 (:r_k_f) 0.035101 -9.21294e-16 -1.0203 (:w_star) 1.14353 4.37676 14.5872 (:z) 1.0 0.0 0.0 (:z_f) 1.0 3.85002e-18 2.21263e-15 (:calibr_pi_obj) 1.0 0.0 0.0 (:calibr_pi) 0.0 0.0 0.0
The first column of the returned matrix shows the SS while the second to last columns show the derivatives of the SS values (indicated in the rows) with respect to the parameters (indicated in the columns). For example, the derivative of C with respect to beta is 14.4994. This means that if beta is increased by 1, C would increase by 14.4994 approximately. How this plays out can be seen by changing beta from 0.99 to 0.991 (a change of +0.001):
julia> get_steady_state(Smets_Wouters_2003, parameter_derivatives = [:alpha,:G_bar], parameters = :beta => .991)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_calibrated_parameters ∈ 56-element Vector{Symbol} → Steady_state_and_∂steady_state∂parameter ∈ 3-element Vector{Symbol} And data, 56×3 Matrix{Float64}: (:Steady_state) (:G_bar) (:alpha) (:C) 1.25421 -0.47742 7.33193 (:C_f) 1.25421 -0.47742 7.33193 (:G) 0.362 1.0 1.55972e-15 (:G_f) 0.362 1.0 1.55972e-15 (:I) 0.47613 0.102174 3.29983 (:I_f) 0.47613 0.102174 3.29983 ⋮ (:r_k) 0.0340817 1.62713e-18 -1.07013e-16 (:r_k_f) 0.0340817 -2.79551e-17 3.95916e-16 (:w_star) 1.15842 1.38677e-15 4.5044 (:z) 1.0 0.0 0.0 (:z_f) 1.0 -7.79768e-16 -3.44275e-16 (:calibr_pi_obj) 1.0 0.0 0.0 (:calibr_pi) 0.0 0.0 0.0
Note that get_steady_state like all other get functions has the parameters argument. Hence, for whatever output is being examined the parameters of the model can be changed.
The new value of beta changed the SS as expected and C increased by 0.01465. The elasticity (0.01465/0.001) comes close to the partial derivative previously calculated. The derivatives help understanding the effect of parameter changes on the steady state and make for easier navigation of the parameter space.
Standard deviations
Next to the SS the model implied standard deviations of the model can also be displayed. get_standard_deviation takes care of this. Additionally the parameter values will be set to what they were in the beginning by passing on a Tuple of Pairs containing the Symbols of the parameters to be changed and their new (initial) values (e.g. (:alpha => 0.3, :beta => .99)).
julia> get_standard_deviation(Smets_Wouters_2003, parameter_derivatives = [:alpha,:beta], parameters = (:alpha => 0.3, :beta => .99))2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Standard_deviation_and_∂standard_deviation∂parameter ∈ 3-element Vector{Symbol} And data, 54×3 Matrix{Float64}: (:Standard_deviation) (:alpha) (:beta) (:C) 2.0521 9.69554 -9.78014 (:C_f) 3.05478 13.0917 -0.834005 (:G) 0.373165 2.04433e-14 -6.78737e-14 (:G_f) 0.373165 4.21408e-14 1.3128e-13 (:I) 3.00453 13.9594 95.911 (:I_f) 3.46854 14.3686 105.856 ⋮ (:q) 4.00515 -33.4496 -162.411 (:q_f) 4.4155 -38.7034 -185.444 (:r_k) 0.0214415 -0.0329408 -0.765379 (:r_k_f) 0.024052 -0.0464338 -0.879571 (:w_star) 1.78357 7.29609 16.3162 (:z) 3.6145 -5.553 -23.9589 (:z_f) 4.05456 -7.82759 -30.4172
The function returns the model implied standard deviations of the model variables and their derivatives with respect to the model parameters. For example, the derivative of the standard deviation of q with resect to alpha is -19.0184. In other words, the standard deviation of q decreases with increasing alpha.
Correlations
Another useful statistic is the model implied correlation of variables. get_correlation is used for this:
julia> get_correlation(Smets_Wouters_2003)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → 𝑉𝑎𝑟𝑖𝑎𝑏𝑙𝑒𝑠 ∈ 54-element Vector{Symbol} And data, 54×54 Matrix{Float64}: (:C) (:C_f) … (:w_star) (:z) (:z_f) (:C) 1.0 0.780337 0.268043 -0.376451 -0.235315 (:C_f) 0.780337 1.0 -0.270933 -0.360704 -0.0656837 (:G) -0.0527993 -0.0467115 0.0107289 0.0458516 0.0367702 (:G_f) -0.0527993 -0.0467115 0.0107289 0.0458516 0.0367702 (:I) 0.847762 0.589359 … 0.365918 -0.232441 -0.228074 (:I_f) 0.730945 0.807339 -0.222569 -0.316751 -0.152991 ⋮ ⋱ ⋮ (:q) -0.887824 -0.671841 -0.241974 0.666198 0.515866 (:q_f) -0.735122 -0.785457 0.109852 0.648854 0.619623 (:r_k) -0.376451 -0.360704 … 0.0530152 1.0 0.708626 (:r_k_f) -0.235315 -0.0656837 -0.235914 0.708626 1.0 (:w_star) 0.268043 -0.270933 1.0 0.0530152 -0.235914 (:z) -0.376451 -0.360704 0.0530152 1.0 0.708626 (:z_f) -0.235315 -0.0656837 -0.235914 0.708626 1.0
Autocorrelations
Next, the model implied autocorrelations of model variables can be examined using the get_autocorrelation function:
julia> get_autocorrelation(Smets_Wouters_2003)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Autocorrelation_periods ∈ 5-element UnitRange{Int64} And data, 54×5 Matrix{Float64}: (1) (2) (3) (4) (5) (:C) 0.974847 0.926565 0.870535 0.814803 0.763179 (:C_f) 0.926329 0.816903 0.710851 0.619903 0.54579 (:G) 0.949 0.900601 0.85467 0.811082 0.769717 (:G_f) 0.949 0.900601 0.85467 0.811082 0.769717 (:I) 0.99356 0.977053 0.952851 0.922915 0.888858 (:I_f) 0.988563 0.962684 0.927562 0.886689 0.842531 ⋮ ⋮ (:q) 0.982511 0.966901 0.952778 0.939809 0.927725 (:q_f) 0.978759 0.961856 0.947539 0.934872 0.923296 (:r_k) 0.982643 0.964915 0.946827 0.928418 0.90976 (:r_k_f) 0.987354 0.964983 0.939136 0.912395 0.885865 (:w_star) 0.958378 0.913491 0.865866 0.816377 0.76593 (:z) 0.982643 0.964915 0.946827 0.928418 0.90976 (:z_f) 0.987354 0.964983 0.939136 0.912395 0.885865
Variance decomposition
The model implied contribution of each shock to the variance of the model variables can be calculate by using the get_variance_decomposition function:
julia> get_variance_decomposition(Smets_Wouters_2003)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Shocks ∈ 9-element Vector{Symbol} And data, 54×9 Matrix{Float64}: (:eta_G) (:eta_I) … (:eta_pi) (:eta_w) (:C) 0.00393945 0.00120919 0.00114385 3.04469e-7 (:C_f) 0.00271209 0.000559959 0.0 0.0 (:G) 1.0 0.0 0.0 0.0 (:G_f) 1.0 0.0 0.0 0.0 (:I) 0.00281317 0.00430133 … 0.00143853 4.08588e-7 (:I_f) 0.00297832 0.00230662 0.0 0.0 ⋮ ⋱ (:q) 0.00661399 0.00311207 0.00147593 5.46081e-7 (:q_f) 0.00680774 0.00191603 0.0 0.0 (:r_k) 0.00532774 0.0044839 … 0.00144016 1.57736e-6 (:r_k_f) 0.00496212 0.00271529 0.0 0.0 (:w_star) 0.000299473 0.000385553 0.00378742 5.33425e-5 (:z) 0.00532774 0.0044839 0.00144016 1.57736e-6 (:z_f) 0.00496212 0.00271529 0.0 0.0
Conditional variance decomposition
Last but not least, the model implied contribution of each shock per period to the variance of the model variables (also called forecast error variance decomposition) can be examined by using the get_conditional_variance_decomposition function:
julia> get_conditional_variance_decomposition(Smets_Wouters_2003)3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Shocks ∈ 9-element Vector{Symbol} ◪ Periods ∈ 21-element Vector{Float64} And data, 54×9×21 Array{Float64, 3}: [showing 3 of 21 slices] [:, :, 1] ~ (:, :, 1.0): (:eta_G) (:eta_I) … (:eta_pi) (:eta_w) (:C) 0.00112613 0.000121972 0.000641471 1.13378e-8 (:C_f) 0.000858896 8.75785e-6 0.0 0.0 (:G) 1.0 0.0 0.0 0.0 ⋮ ⋱ (:r_k_f) 0.00247112 2.51971e-5 … 0.0 0.0 (:w_star) 0.000499182 5.21776e-5 0.00154091 0.000651141 (:z) 0.00467774 2.66346e-5 0.000191172 1.41817e-5 (:z_f) 0.00247112 2.51971e-5 0.0 0.0 [:, :, 11] ~ (:, :, 11.0): (:eta_G) (:eta_I) … (:eta_pi) (:eta_w) (:C) 0.00206241 0.000426699 0.000835055 1.18971e-7 (:C_f) 0.00154049 0.000234041 0.0 0.0 (:G) 1.0 0.0 0.0 0.0 ⋮ ⋱ (:r_k_f) 0.00172562 7.81447e-5 … 0.0 0.0 (:w_star) 0.000290106 0.000212217 0.00281349 7.51886e-5 (:z) 0.0045622 0.000147997 0.00200035 8.29763e-6 (:z_f) 0.00172562 7.81447e-5 0.0 0.0 [:, :, 21] ~ (:, :, Inf): (:eta_G) (:eta_I) … (:eta_pi) (:eta_w) (:C) 0.00393945 0.00120919 0.00114385 3.04469e-7 (:C_f) 0.00271209 0.000559959 0.0 0.0 (:G) 1.0 0.0 0.0 0.0 ⋮ ⋱ (:r_k_f) 0.00496212 0.00271529 … 0.0 0.0 (:w_star) 0.000299473 0.000385553 0.00378742 5.33425e-5 (:z) 0.00532774 0.0044839 0.00144016 1.57736e-6 (:z_f) 0.00496212 0.00271529 0.0 0.0
Plot conditional variance decomposition

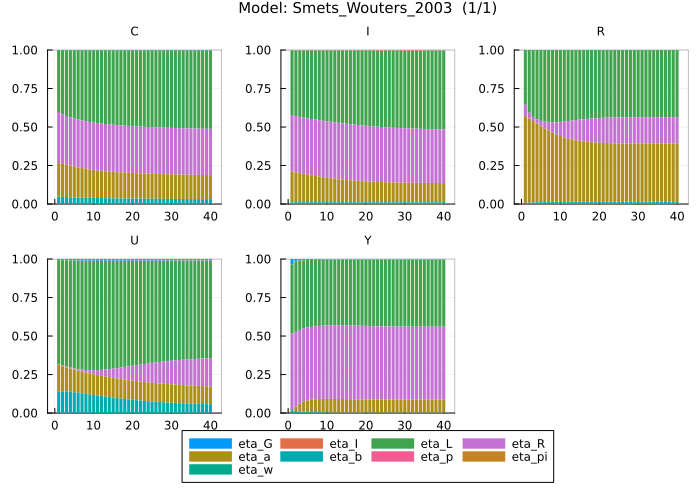

Especially for the conditional variance decomposition it is convenient to look at a plot instead of the raw numbers. This can be done using the plot_conditional_variance_decomposition function. Note that the StatsPlots package needs to be imported once before the first plot.
julia> plot_conditional_variance_decomposition(Smets_Wouters_2003, variables = [:U,:Y,:I,:R,:C])1-element Vector{Any}: Plot{Plots.GRBackend() n=54}
Model solution
A further insightful output are the policy and transition functions of the first order perturbation solution. To retrieve the solution the function get_solution can be called:
julia> get_solution(Smets_Wouters_2003)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Steady_state__States__Shocks ∈ 29-element Vector{Symbol} → Variables ∈ 54-element Vector{Symbol} And data, 29×54 adjoint(::Matrix{Float64}) with eltype Float64: (:C) (:C_f) … (:z) (:z_f) (:Steady_state) 1.20438 1.20438 1.0 1.0 (:C₍₋₁₎) 0.536418 -8.85553e-15 0.214756 -6.70911e-14 (:C_f₍₋₁₎) 0.0163196 0.410787 0.00766973 0.139839 (:I₍₋₁₎) -0.102895 -1.28113e-14 0.317145 -1.18485e-13 (:I_f₍₋₁₎) 0.0447033 -0.24819 … 0.0276803 0.213957 (:K₍₋₁₎) 0.00880026 1.53511e-16 -0.0587166 -8.80181e-15 ⋮ ⋱ ⋮ (:eta_L₍ₓ₎) 0.252424 0.838076 0.0982057 0.430915 (:eta_R₍ₓ₎) -0.229757 -1.1241e-14 -0.179716 9.89227e-15 (:eta_a₍ₓ₎) 0.185454 0.699595 … -0.551529 0.348639 (:eta_b₍ₓ₎) 0.087379 0.0150811 0.0338767 -0.013001 (:eta_p₍ₓ₎) -9.72053e-5 -2.77902e-17 -0.00134983 1.62232e-17 (:eta_pi₍ₓ₎) 0.0100939 8.25515e-16 0.00816804 -6.53913e-16 (:eta_w₍ₓ₎) -4.24362e-5 -1.19653e-17 0.00222469 7.77187e-18
The solution provides information about how past states and present shocks impact present variables. The first row contains the SS for the variables denoted in the columns. The second to last rows contain the past states, with the time index ₍₋₁₎, and present shocks, with exogenous variables denoted by ₍ₓ₎. For example, the immediate impact of a shock to eta_w on z is 0.00222469.
There is also the possibility to visually inspect the solution using the plot_solution function. Note that the StatsPlots package needs to be imported once before the first plot.
julia> plot_solution(Smets_Wouters_2003, :pi, variables = [:C,:I,:K,:L,:W,:R])1-element Vector{Any}: Plot{Plots.GRBackend() n=14}
The chart shows the first order perturbation solution mapping from the past state pi to the present variables C, I, K, L, W, and R. The state variable covers a range of two standard deviations around the non-stochastic steady state and all other states remain in the non-stochastic steady state.
Obtain array of IRFs or model simulations
Last but not least the user might want to obtain simulated time series of the model or IRFs without plotting them. For IRFs this is possible by calling get_irf:
julia> get_irf(Smets_Wouters_2003)3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 9-element Vector{Symbol} And data, 54×40×9 Array{Float64, 3}: [showing 3 of 9 slices] [:, :, 1] ~ (:, :, :eta_G): (1) (2) … (39) (40) (:C) -0.0133742 -0.0204371 -0.011918 -0.0117755 (:C_f) -0.0320112 -0.0407958 -0.0133648 -0.0132136 (:G) 0.11765 0.11165 0.0160956 0.0152748 ⋮ ⋱ ⋮ (:r_k_f) 0.000163701 0.000117874 … 0.00020119 0.000200821 (:w_star) 0.0111119 0.0101598 -0.00225204 -0.00224756 (:z) 0.040404 0.0348715 0.0291886 0.0292194 (:z_f) 0.027596 0.0198707 0.0339156 0.0338535 [:, :, 5] ~ (:, :, :eta_a): (1) (2) … (39) (40) (:C) 0.185454 0.266366 0.0448634 0.0445393 (:C_f) 0.699595 0.807224 0.0641954 0.0635383 (:G) -4.25779e-16 -7.58798e-15 8.02499e-15 7.87848e-15 ⋮ ⋱ ⋮ (:r_k_f) 0.00206815 0.00250599 … -0.0012247 -0.00120755 (:w_star) -0.0685999 -0.0257599 0.0104469 0.00989232 (:z) -0.551529 -0.377876 -0.154075 -0.152389 (:z_f) 0.348639 0.422447 -0.206454 -0.203564 [:, :, 9] ~ (:, :, :eta_w): (1) (2) … (39) (40) (:C) -4.24362e-5 -7.53116e-5 -0.000102464 -0.000101596 (:C_f) -1.19653e-17 6.12458e-17 1.18273e-17 1.56851e-17 (:G) -6.83478e-19 6.17901e-17 -1.67797e-17 -1.61054e-17 ⋮ ⋱ ⋮ (:r_k_f) 4.61033e-20 3.14812e-18 … -1.24014e-18 -1.26325e-18 (:w_star) 0.012691 0.00165858 -8.17445e-5 -7.60783e-5 (:z) 0.00222469 0.00187724 0.000271989 0.000277738 (:z_f) 7.77187e-18 5.31295e-16 -2.08964e-16 -2.12859e-16
which returns a 3-dimensional KeyedArray (provided by the AxisKeys package) with variables (absolute deviations from the relevant steady state by default) in rows, the period in columns, and the shocks as the third dimension.
For simulations this is possible by calling simulate:
julia> simulate(Smets_Wouters_2003)3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 54-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 1-element Vector{Symbol} And data, 54×40×1 Array{Float64, 3}: [:, :, 1] ~ (:, :, :simulate): (1) (2) … (39) (40) (:C) 0.945738 1.07249 1.8572 1.20935 (:C_f) 1.46697 2.55884 2.22993 0.577723 (:G) 0.412695 0.480161 0.0546735 0.13694 (:G_f) 0.412695 0.480161 0.0546735 0.13694 (:I) 0.491972 0.750264 … 3.45979 3.03131 (:I_f) 0.687921 1.31139 3.53859 2.722 ⋮ ⋱ ⋮ (:q_f) 1.92669 1.02533 0.323953 0.843021 (:r_k) 0.0331654 0.0303738 … 0.0233138 0.0269919 (:r_k_f) 0.0363376 0.0401897 0.021499 0.0156813 (:w_star) 0.749967 0.511389 2.72061 3.22525 (:z) 0.673708 0.203114 -0.987023 -0.366997 (:z_f) 1.20846 1.85783 -1.29296 -2.27368
which returns the simulated data in levels in a 3-dimensional KeyedArray (provided by the AxisKeys package) of the same structure as for the IRFs.
Conditional forecasts
Conditional forecasting is a useful tool to incorporate for example forecasts into a model and then add shocks on top.
For example there might be interest in the model dynamics given a path for Y and pi for the first 4 quarters and the next quarter a negative shock to eta_w arrives. Furthermore, only a subset of shocks should be used to match the conditions on the endogenous variables for the first two periods. This can be implemented using the get_conditional_forecast function and visualised with the plot_conditional_forecast function.
First, define the conditions on the endogenous variables as deviations from the non-stochastic steady state (Y and pi in this case) using a KeyedArray from the AxisKeys package (check get_conditional_forecast for other ways to define the conditions):
julia> using AxisKeysjulia> conditions = KeyedArray(Matrix{Union{Nothing,Float64}}(undef,2,4),Variables = [:Y, :pi], Periods = 1:4)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 2-element Vector{Symbol} → Periods ∈ 4-element UnitRange{Int64} And data, 2×4 Matrix{Union{Nothing, Float64}}: (1) (2) (3) (4) (:Y) nothing nothing nothing nothing (:pi) nothing nothing nothing nothingjulia> conditions[1,1:4] .= [-.01,0,.01,.02];julia> conditions[2,1:4] .= [.01,0,-.01,-.02];
Note that all other endogenous variables not part of the KeyedArray (provided by the AxisKeys package) are also not conditioned on.
Next, define the conditions on the shocks using a Matrix (check get_conditional_forecast for other ways to define the conditions on the shocks):
julia> shocks = Matrix{Union{Nothing,Float64}}(undef,9,5)9×5 Matrix{Union{Nothing, Float64}}: nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothing nothingjulia> shocks[[1:3...,5,9],1:2] .= 0;julia> shocks[9,5] = -1;
The above shock Matrix means that for the first two periods shocks 1, 2, 3, 5, and 9 are fixed at zero and in the fifth period there is a negative shock of eta_w (the 9th shock).
Finally the conditional forecast can be obtained:
julia> get_conditional_forecast(Smets_Wouters_2003, conditions, shocks = shocks, variables = [:Y,:pi,:W], conditions_in_levels = false)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_shocks ∈ 12-element Vector{Symbol} → Periods ∈ 45-element UnitRange{Int64} And data, 12×45 Matrix{Float64}: (1) (2) … (44) (45) (:W) -0.00477569 -0.00178866 -0.00209378 -0.00154841 (:Y) -0.01 -5.55112e-17 0.0028801 0.00269595 (:pi) 0.01 0.0 -0.000376449 -0.00032659 (:eta_G₍ₓ₎) 0.0 0.0 0.0 0.0 (:eta_I₍ₓ₎) 0.0 0.0 … 0.0 0.0 (:eta_L₍ₓ₎) 0.0 0.0 0.0 0.0 (:eta_R₍ₓ₎) -0.320335 0.41088 0.0 0.0 (:eta_a₍ₓ₎) 0.0 0.0 0.0 0.0 (:eta_b₍ₓ₎) -1.9752 1.99989 0.0 0.0 (:eta_p₍ₓ₎) 0.712388 -0.726688 … 0.0 0.0 (:eta_pi₍ₓ₎) 0.548245 -0.563207 0.0 0.0 (:eta_w₍ₓ₎) 0.0 0.0 0.0 0.0
The function returns a KeyedArray (provided by the AxisKeys package) with the values of the endogenous variables and shocks matching the conditions exactly.

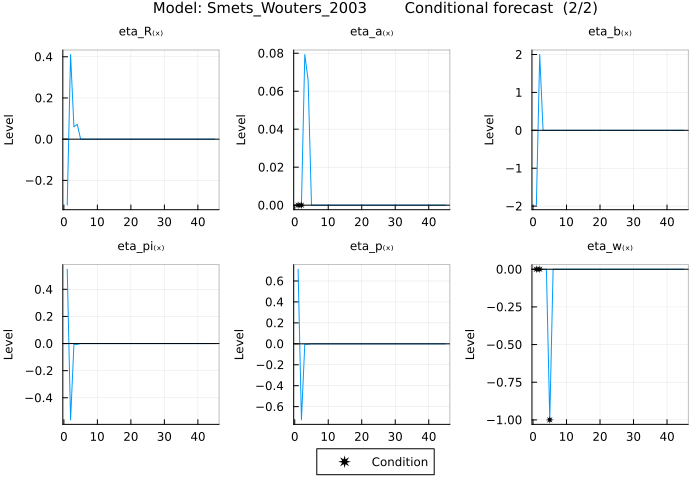

The conditional forecast can also be plotted. Note that the StatsPlots package needs to be imported once before the first plot.
julia> plot_conditional_forecast(Smets_Wouters_2003,conditions, shocks = shocks, plots_per_page = 6,variables = [:Y,:pi,:W],conditions_in_levels = false)2-element Vector{Any}: Plot{Plots.GRBackend() n=18} Plot{Plots.GRBackend() n=15}
and conditions_in_levels = false needs to be set since the conditions are defined in deviations.
Note that the stars indicate the values the model is conditioned on.
