Conditional Variance Decomposition
The plot_conditional_variance_decomposition function visualizes the forecast error variance decomposition (FEVD), showing how much of the variance in forecast errors for each variable can be attributed to different shocks over various forecast horizons.
First, define and load a model:
@model Smets_Wouters_2007_linear begin
a[0] = calfa * rkf[0] + (1 - calfa) * wf[0]
zcapf[0] = rkf[0] * 1 / (czcap / (1 - czcap))
rkf[0] = wf[0] + labf[0] - kf[0]
kf[0] = zcapf[0] + kpf[-1]
invef[0] = qs[0] + 1 / (1 + cgamma * cbetabar) * (pkf[0] * 1 / (csadjcost * cgamma ^ 2) + invef[-1] + invef[1] * cgamma * cbetabar)
pkf[0] = b[0] * (1 / ((1 - chabb / cgamma) / (csigma * (1 + chabb / cgamma)))) - rrf[0] + rkf[1] * (crk / (crk + (1 - ctou))) + pkf[1] * ((1 - ctou) / (crk + (1 - ctou)))
cf[0] = b[0] + cf[-1] * chabb / cgamma / (1 + chabb / cgamma) + cf[1] * 1 / (1 + chabb / cgamma) + (labf[0] - labf[1]) * ((csigma - 1) * cwhlc / (csigma *(1 + chabb / cgamma))) - rrf[0] * (1 - chabb / cgamma) / (csigma * (1 + chabb / cgamma))
yf[0] = g[0] + cf[0] * ccy + invef[0] * ciy + zcapf[0] * crkky
yf[0] = cfc * (a[0] + calfa * kf[0] + (1 - calfa) * labf[0])
wf[0] = labf[0] * csigl + cf[0] * 1 / (1 - chabb / cgamma) - cf[-1] * chabb / cgamma / (1 - chabb / cgamma)
kpf[0] = kpf[-1] * (1 - cikbar) + invef[0] * cikbar + qs[0] * csadjcost * cgamma ^ 2 * cikbar
mc[0] = calfa * rk[0] + (1 - calfa) * w[0] - a[0]
zcap[0] = 1 / (czcap / (1 - czcap)) * rk[0]
rk[0] = w[0] + lab[0] - k[0]
k[0] = zcap[0] + kp[-1]
inve[0] = qs[0] + 1 / (1 + cgamma * cbetabar) * (pk[0] * 1 / (csadjcost * cgamma ^ 2) + inve[-1] + inve[1] * cgamma * cbetabar)
pk[0] = pinf[1] - r[0] + b[0] * 1 / ((1 - chabb / cgamma) / (csigma * (1 + chabb / cgamma))) + rk[1] * (crk / (crk + (1 - ctou))) + pk[1] * ((1 - ctou) / (crk + (1 - ctou)))
c[0] = b[0] + c[-1] * chabb / cgamma / (1 + chabb / cgamma) + c[1] * 1 / (1 + chabb / cgamma) +
(lab[0] - lab[1]) * ((csigma - 1) * cwhlc / (csigma * (1 + chabb / cgamma))) - (r[0] - pinf[1]) * (1 - chabb / cgamma) / (csigma * (1 + chabb / cgamma))
y[0] = g[0] + c[0] * ccy + inve[0] * ciy + zcap[0] * crkky
y[0] = cfc * (a[0] + calfa * k[0] + (1 - calfa) * lab[0])
pinf[0] = spinf[0] + 1 / (1 + cindp * cgamma * cbetabar) * (cindp * pinf[-1] + pinf[1] * cgamma * cbetabar + mc[0] * (1 - cprobp) * (1 - cprobp * cgamma * cbetabar) / cprobp / (1 + (cfc - 1) * curvp))
w[0] = sw[0] + w[-1] * 1 / (1 + cgamma * cbetabar) + w[1] * cgamma * cbetabar / (1 + cgamma * cbetabar) + pinf[-1] * cindw / (1 + cgamma * cbetabar) - pinf[0] * (1 + cindw * cgamma * cbetabar) / (1 + cgamma * cbetabar) + pinf[1] * cgamma * cbetabar / (1 + cgamma * cbetabar) + (csigl * lab[0] + c[0] * 1 / (1 - chabb / cgamma) - c[-1] * chabb / cgamma / (1 - chabb / cgamma) - w[0]) * 1 / (1 + (clandaw - 1) * curvw) * (1 - cprobw) * (1 - cprobw * cgamma * cbetabar) / (cprobw * (1 + cgamma * cbetabar))
r[0] = pinf[0] * crpi * (1 - crr) + (1 - crr) * cry * (y[0] - yf[0]) + crdy * (y[0] - yf[0] - y[-1] + yf[-1]) + crr * r[-1] + ms[0]
a[0] = crhoa * a[-1] + z_ea * ea[x]
b[0] = crhob * b[-1] + z_eb * eb[x]
g[0] = crhog * g[-1] + z_eg * eg[x] + z_ea * ea[x] * cgy
qs[0] = crhoqs * qs[-1] + z_eqs * eqs[x]
ms[0] = crhoms * ms[-1] + z_em * em[x]
spinf[0] = crhopinf * spinf[-1] + epinfma[0] - cmap * epinfma[-1]
epinfma[0] = z_epinf * epinf[x]
sw[0] = crhow * sw[-1] + ewma[0] - cmaw * ewma[-1]
ewma[0] = z_ew * ew[x]
kp[0] = kp[-1] * (1 - cikbar) + inve[0] * cikbar + qs[0] * csadjcost * cgamma ^ 2 * cikbar
dy[0] = ctrend + y[0] - y[-1]
dc[0] = ctrend + c[0] - c[-1]
dinve[0] = ctrend + inve[0] - inve[-1]
pinfobs[0] = constepinf + pinf[0]
robs[0] = r[0] + conster
dwobs[0] = ctrend + w[0] - w[-1]
labobs[0] = lab[0] + constelab
end
@parameters Smets_Wouters_2007_linear begin
ctou = .025
clandaw = 1.5
cg = 0.18
curvp = 10
curvw = 10
calfa = .24
csigma = 1.5
cfc = 1.5
cgy = 0.51
csadjcost = 6.0144
chabb = 0.6361
cprobw = 0.8087
csigl = 1.9423
cprobp = 0.6
cindw = 0.3243
cindp = 0.47
czcap = 0.2696
crpi = 1.488
crr = 0.8762
cry = 0.0593
crdy = 0.2347
crhoa = 0.9977
crhob = 0.5799
crhog = 0.9957
crhoqs = 0.7165
crhoms = 0
crhopinf = 0
crhow = 0
cmap = 0
cmaw = 0
constelab = 0
constepinf = 0.7
constebeta = 0.7420
ctrend = 0.3982
z_ea = 0.4618
z_eb = 1.8513
z_eg = 0.6090
z_em = 0.2397
z_ew = 0.2089
z_eqs = 0.6017
z_epinf = 0.1455
cpie = 1 + constepinf / 100 # gross inflation rate
cgamma = 1 + ctrend / 100 # gross growth rate
cbeta = 1 / (1 + constebeta / 100) # discount factor
clandap = cfc # fixed cost share/gross price markup
cbetabar= cbeta * cgamma ^ (-csigma) # growth-adjusted discount factor in Euler equation
cr = cpie / cbetabar # steady state gross real interest rate
crk = 1 / cbetabar - (1 - ctou) # steady state rental rate
cw = (calfa ^ calfa * (1 - calfa) ^ (1 - calfa) / (clandap * crk ^ calfa)) ^ (1 / (1 - calfa)) # steady state real wage
cikbar = 1 - (1 - ctou) / cgamma # (1-k_1) in equation LOM capital, equation (8)
cik = cikbar * cgamma # i_k: investment-capital ratio
clk = (1 - calfa) / calfa * crk / cw # labor to capital ratio
cky = cfc * clk ^ (calfa - 1) # k_y: steady state output ratio
ciy = cik * cky # investment-output ratio
ccy = 1 - cg - cik * cky # consumption-output ratio
crkky = crk * cky # z_y=R_{*}^k*k_y
cwhlc = (1 / clandaw) * (1 - calfa) / calfa * crk * cky / ccy # W^{h}_{*}*L_{*}/C_{*} used in c_2 in equation (2)
conster = (cr - 1) * 100 # steady state federal funds rate ($\bar r$)
endCalling the conditional variance decomposition plot function:
plot_conditional_variance_decomposition(Smets_Wouters_2007_linear)
This creates conditional variance decomposition plots showing the contribution of each shock to the forecast error variance of each variable across different forecast horizons.
The vertical axis shows the share of the shocks variance contribution, and the horizontal axis the period of the variance decomposition. The stacked bars represent each shocks variance contribution at a specific time horizon.
Note that if occasionally binding constraints are present in the model, they are not taken into account here.
The same function can be called using different names. For example: plot_fevd, or plot_forecast_error_variance_decomposition. Going forward, plot_fevd will be used for brevity.
Periods Argument
The periods argument (default: 40, type: Int) specifies the number of forecast horizons to include in the variance decomposition. This determines how far into the future the decomposition extends.

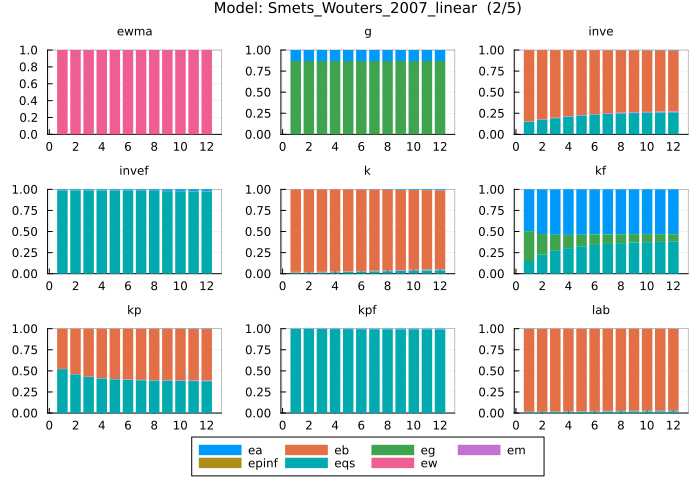

# Show variance decomposition up to 12 periods ahead
plot_fevd(Smets_Wouters_2007_linear, periods = 12)
Variables to Plot
The variables argument (default: :all) specifies for which variables to show results. Variable names can be specified as either a Symbol or String (e.g. :y or "y"), or Tuple, Matrix or Vector of String or Symbol. Any variables not part of the model will trigger a warning. :all_excluding_auxiliary_and_obc includes all variables except auxiliary variables and those related to occasionally binding constraints (OBC). :all_excluding_obc includes all variables except those related to occasionally binding constraints. :all includes all variables.

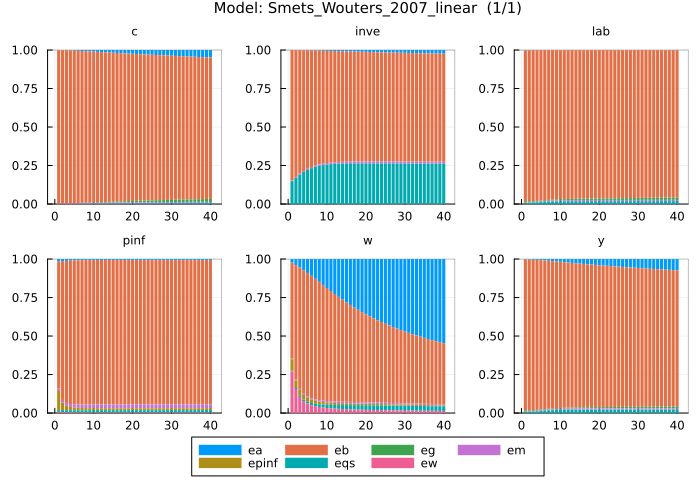

Specific variables can be selected to plot. The following example selects output Y, consumption c, investment inve, inflation pinf, wages w, and labor lab using a Vector of Symbols:
plot_fevd(Smets_Wouters_2007_linear,
variables = [:inve, :c, :y, :pinf, :w, :lab])
The plot now displays only one plot with the six selected variables (sorted alphabetically).
The same can be done using a Tuple:
plot_fevd(Smets_Wouters_2007_linear,
variables = (:inve, :c, :y, :pinf, :w, :lab))a Matrix:
plot_fevd(Smets_Wouters_2007_linear,
variables = [:inve :c :y :pinf :w :lab])or providing the variable names as Strings:
plot_fevd(Smets_Wouters_2007_linear,
variables = ["inve", "c", "y", "pinf", "w", "lab"])or a single variable as a Symbol:
plot_fevd(Smets_Wouters_2007_linear,
variables = :inve)or as a String:
plot_fevd(Smets_Wouters_2007_linear,
variables = "inve")Then there are some predefined options:
:all_excluding_auxiliary_and_obc plots all variables except auxiliary variables and those used to enforce occasionally binding constraints (OBC).
plot_fevd(Smets_Wouters_2007_linear,
variables = :all_excluding_auxiliary_and_obc):all_excluding_obc plots all variables except those used to enforce occasionally binding constraints (OBC).
plot_fevd(Smets_Wouters_2007_linear,
variables = :all_excluding_obc)To see auxiliary variables, use a model that defines them. The FS2000 model can be used:
@model FS2000 begin
dA[0] = exp(gam + z_e_a * e_a[x])
log(m[0]) = (1 - rho) * log(mst) + rho * log(m[-1]) + z_e_m * e_m[x]
- P[0] / (c[1] * P[1] * m[0]) + bet * P[1] * (alp * exp( - alp * (gam + log(e[1]))) * k[0] ^ (alp - 1) * n[1] ^ (1 - alp) + (1 - del) * exp( - (gam + log(e[1])))) / (c[2] * P[2] * m[1])=0
W[0] = l[0] / n[0]
- (psi / (1 - psi)) * (c[0] * P[0] / (1 - n[0])) + l[0] / n[0] = 0
R[0] = P[0] * (1 - alp) * exp( - alp * (gam + z_e_a * e_a[x])) * k[-1] ^ alp * n[0] ^ ( - alp) / W[0]
1 / (c[0] * P[0]) - bet * P[0] * (1 - alp) * exp( - alp * (gam + z_e_a * e_a[x])) * k[-1] ^ alp * n[0] ^ (1 - alp) / (m[0] * l[0] * c[1] * P[1]) = 0
c[0] + k[0] = exp( - alp * (gam + z_e_a * e_a[x])) * k[-1] ^ alp * n[0] ^ (1 - alp) + (1 - del) * exp( - (gam + z_e_a * e_a[x])) * k[-1]
P[0] * c[0] = m[0]
m[0] - 1 + d[0] = l[0]
e[0] = exp(z_e_a * e_a[x])
y[0] = k[-1] ^ alp * n[0] ^ (1 - alp) * exp( - alp * (gam + z_e_a * e_a[x]))
gy_obs[0] = dA[0] * y[0] / y[-1]
gp_obs[0] = (P[0] / P[-1]) * m[-1] / dA[0]
log_gy_obs[0] = log(gy_obs[0])
log_gp_obs[0] = log(gp_obs[0])
end
@parameters FS2000 begin
alp = 0.356
bet = 0.993
gam = 0.0085
mst = 1.0002
rho = 0.129
psi = 0.65
del = 0.01
z_e_a = 0.035449
z_e_m = 0.008862
endSince both c and P appear in t+2, they generate auxiliary variables in the model. Plotting the policy functions for all variables excluding OBC-related ones means auxiliary variables are shown (same for the default :all option since there are no OBCs in this model):
plot_fevd(FS2000,
variables = :all_excluding_obc)
Both c and P appear twice: once as the variable itself and once as an auxiliary variable with the ᴸ⁽¹⁾ superscript, representing the value of the variable in t+1 as expected in t.

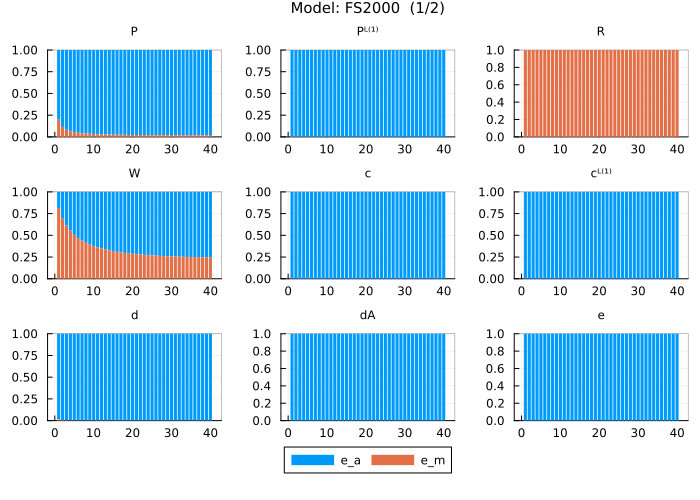

:all (default) plots all variables including auxiliary variables. Since OBCs are not considered with FEVD, variables used to enforce occasionally binding constraints (OBC) are not included.
plot_fevd(FS2000)Parameter Values
When no parameters are provided, the solution uses the previously defined parameter values. Parameters can be provided as a Vector of values, or as a Vector or Tuple of Pairs mapping parameter Symbols or Strings to values. The solution is recalculated when new parameter values differ from the previous ones.
Start by changing the discount factor z_eg to 1:
plot_fevd(Smets_Wouters_2007_linear,
parameters = :z_eg => 1)
The shock contributions changed as a result of changing the shock standard deviation.

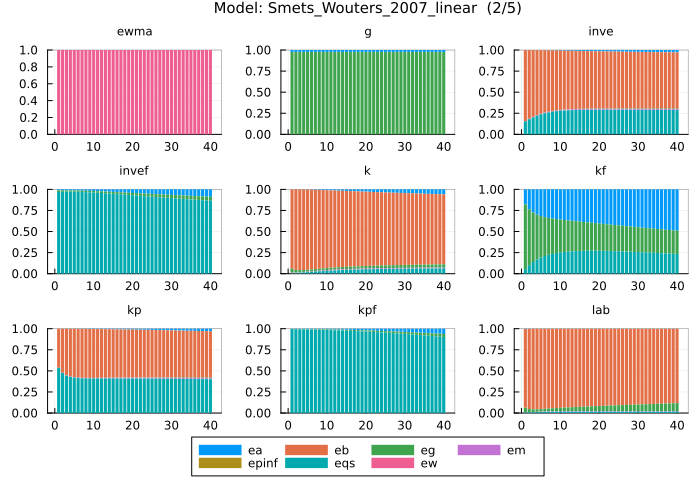

Multiple parameters can also be changed simultaneously. This example changes z_eg to 1.5 and crpi to 1.75 using a Tuple of Pairs and define the variables with Symbols:
plot_fevd(Smets_Wouters_2007_linear,
parameters = (:z_eg => 1.5, :crpi => 1.75))
A Vector of Pairs can also be used:
plot_fevd(Smets_Wouters_2007_linear,
parameters = [:z_eg => 1.5, :crpi => 1.75])Alternatively, use a Vector of parameter values in the order they were defined in the model. To obtain them:
params = get_parameters(Smets_Wouters_2007_linear, values = true)
param_vals = [p[2] for p in params]
plot_fevd(Smets_Wouters_2007_linear,
parameters = param_vals)Plot Attributes
The plot_attributes argument (default: Dict(), type: Dict) accepts a dictionary of attributes passed on to the plotting function. See the Plots.jl documentation for details.
The color palette can be customized using the plot_attributes argument. The following example defines a custom color palette (inspired by the European Commission's economic reports) to plot the FEVD using the Smets_Wouters_2007_linear model. First, define the custom color palette using hex color codes:
ec_color_palette =
[
"#FFD724", # "Sunflower Yellow"
"#353B73", # "Navy Blue"
"#2F9AFB", # "Sky Blue"
"#B8AAA2", # "Taupe Grey"
"#E75118", # "Vermilion"
"#6DC7A9", # "Mint Green"
"#F09874", # "Coral"
"#907800" # "Olive"

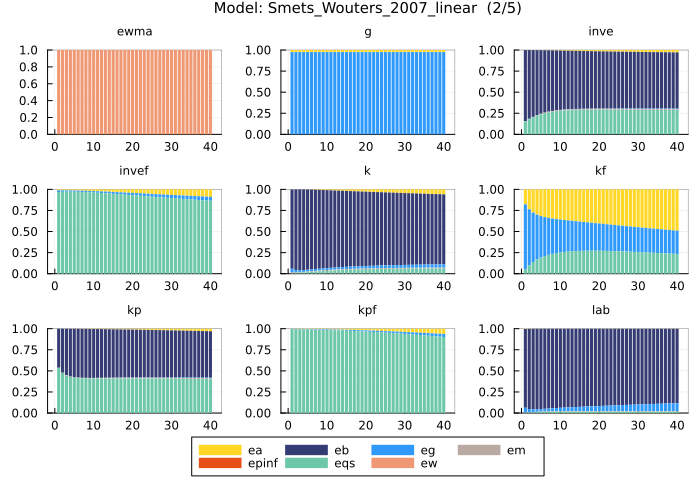

]Next, plot the FEVD using the custom color palette:
plot_fevd(Smets_Wouters_2007_linear,
plot_attributes = Dict(:palette => ec_color_palette))
The colors of the shock contributions now follow the custom color palette.
Other attributes such as the font family can also be modified (see here for GR font options):
plot_fevd(Smets_Wouters_2007_linear,
plot_attributes = Dict(:fontfamily => "computer modern"))
All text in the plot now uses the Computer Modern font. Note that font rendering inherits the constraints of the plotting backend (GR in this case).

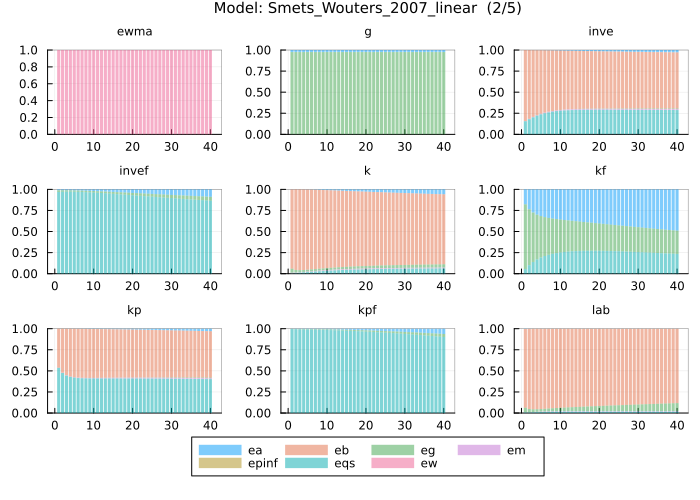

Here is another example that customizes the alpha (transparency) of the filled areas in the FEVD plots:
plot_fevd(Smets_Wouters_2007_linear,
plot_attributes = Dict(:fillalpha => .5))
Plots Per Page

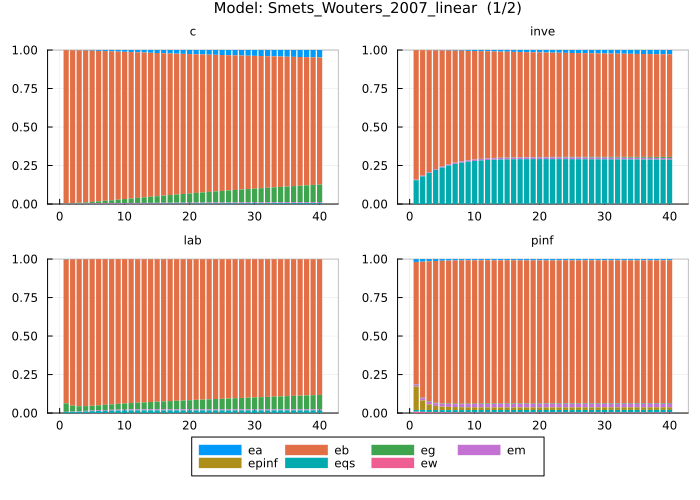

The plots_per_page argument (default: 9, type: Int) controls the number of subplots per page. When the number of variables exceeds this value, multiple pages are created. The following example selects 6 variables and sets plots_per_page to 4, resulting in 2 pages with the first page having 4 subplots and the second page having 2 subplots:
plot_fevd(Smets_Wouters_2007_linear,
variables = [:inve, :c, :y, :pinf, :w, :lab],
plots_per_page = 4)
The first page displays the first four variables (sorted alphabetically) with two subplots for each shock. The title indicates this is page 1 of 2.
Display Plots
The show_plots argument (default: true, type: Bool), when true, displays the plots; otherwise, they are only returned as an object.
plot_fevd(Smets_Wouters_2007_linear,
show_plots = false)Saving Plots
The save_plots argument (default: false, type: Bool), when true, saves the plots to disk; otherwise, they are only displayed and returned as an object.
Related arguments control the saving behavior:
save_plots_format(default::pdf, type:Symbol): output format of saved plots. See input formats compatible with GR for valid formats.save_plots_path(default:".", type:String): path where plots are saved. If the path does not exist, it will be created automatically.save_plots_name(default:"fevd", type:Union{String, Symbol}): prefix prepended to the filename when saving plots.
Each plot is saved as a separate file with a name indicating the prefix, model name, shocks, and a sequential number for multiple plots (e.g., fevd__ModelName__1.pdf).
The following example saves all policy functions for the Smets_Wouters_2007_linear model as PNG files in the ../plots directory with fevd_plot as the filename prefix:
plot_fevd(Smets_Wouters_2007_linear,
save_plots = true,
save_plots_format = :png,
save_plots_path = "./../plots",
save_plots_name = :fevd_plot)The plots appear in the specified folder with the specified prefix. Each plot is saved in a separate file with a name reflecting the model, the shock, and a sequential index when the number of variables exceeds the plots per page.
Variable and Shock Renaming (rename dictionary)
The rename_dictionary argument (default: Dict(), type: AbstractDict{<:Union{Symbol, String}, <:Union{Symbol, String}}) maps variable or shock symbols to custom display names in plots. This is particularly useful when comparing models with different variable naming conventions, allowing them to be displayed with consistent labels.

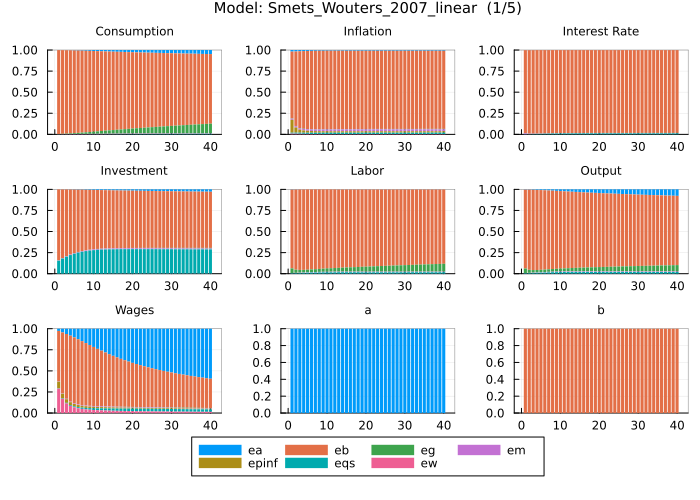

For example, to rename variables for clearer display:
plot_fevd(Smets_Wouters_2007_linear,
rename_dictionary = Dict(
:y => "Output",
:pinfobs => "Inflation",
:robs => "Interest Rate",
:inve => "Investment",
:c => "Consumption",
:w => "Wages",
:lab => "Labor"
))
The rename_dictionary accepts flexible type combinations for keys and values—both Symbol and String types work interchangeably:
# All of these are valid and equivalent:
Dict(:y => "Output") # Symbol key, String value
Dict("y" => "Output") # String key, String value
Dict(:y => :Output) # Symbol key, Symbol value
Dict("y" => :Output) # String key, Symbol valueThis flexibility is particularly useful for models like Backus_Kehoe_Kydland_1992, which uses String representations of variable and shock names (because of {}):

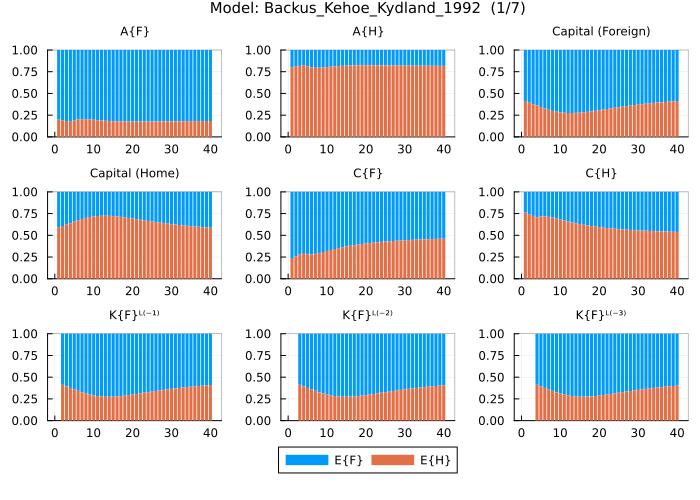

# Define the Backus model (abbreviated for clarity)
@model Backus_Kehoe_Kydland_1992 begin
for co in [H, F]
Y{co}[0] = ((LAMBDA{co}[0] * K{co}[-4]^theta{co} * N{co}[0]^(1-theta{co}))^(-nu{co}) + sigma{co} * Z{co}[-1]^(-nu{co}))^(-1/nu{co})
K{co}[0] = (1-delta{co})*K{co}[-1] + S{co}[0]
X{co}[0] = for lag in (-4+1):0 phi{co} * S{co}[lag] end
A{co}[0] = (1-eta{co}) * A{co}[-1] + N{co}[0]
L{co}[0] = 1 - alpha{co} * N{co}[0] - (1-alpha{co})*eta{co} * A{co}[-1]
U{co}[0] = (C{co}[0]^mu{co}*L{co}[0]^(1-mu{co}))^gamma{co}
psi{co} * mu{co} / C{co}[0]*U{co}[0] = LGM[0]
psi{co} * (1-mu{co}) / L{co}[0] * U{co}[0] * (-alpha{co}) = - LGM[0] * (1-theta{co}) / N{co}[0] * (LAMBDA{co}[0] * K{co}[-4]^theta{co}*N{co}[0]^(1-theta{co}))^(-nu{co})*Y{co}[0]^(1+nu{co})
for lag in 0:(4-1)
beta{co}^lag * LGM[lag]*phi{co}
end +
for lag in 1:4
-beta{co}^lag * LGM[lag] * phi{co} * (1-delta{co})
end = beta{co}^4 * LGM[+4] * theta{co} / K{co}[0] * (LAMBDA{co}[+4] * K{co}[0]^theta{co} * N{co}[+4]^(1-theta{co})) ^ (-nu{co})* Y{co}[+4]^(1+nu{co})
LGM[0] = beta{co} * LGM[+1] * (1+sigma{co} * Z{co}[0]^(-nu{co}-1)*Y{co}[+1]^(1+nu{co}))
NX{co}[0] = (Y{co}[0] - (C{co}[0] + X{co}[0] + Z{co}[0] - Z{co}[-1]))/Y{co}[0]
end
(LAMBDA{H}[0]-1) = rho{H}{H}*(LAMBDA{H}[-1]-1) + rho{H}{F}*(LAMBDA{F}[-1]-1) + Z_E{H} * E{H}[x]
(LAMBDA{F}[0]-1) = rho{F}{F}*(LAMBDA{F}[-1]-1) + rho{F}{H}*(LAMBDA{H}[-1]-1) + Z_E{F} * E{F}[x]
for co in [H,F] C{co}[0] + X{co}[0] + Z{co}[0] - Z{co}[-1] end = for co in [H,F] Y{co}[0] end
end
@parameters Backus_Kehoe_Kydland_1992 begin
K_ss = 11
K[ss] = K_ss | beta
mu = 0.34
gamma = -1.0
alpha = 1
eta = 0.5
theta = 0.36
nu = 3
sigma = 0.01
delta = 0.025
phi = 1/4
psi = 0.5
Z_E = 0.00852
rho{H}{H} = 0.906
rho{F}{F} = rho{H}{H}
rho{H}{F} = 0.088
rho{F}{H} = rho{H}{F}
end
# Backus model example showing String to String mapping
plot_fevd(Backus_Kehoe_Kydland_1992,
rename_dictionary = Dict("K{H}" => "Capital (Home)",
"K{F}" => "Capital (Foreign)",
"Y{H}" => "Output (Home)",
"Y{F}" => "Output (Foreign)"))
Variables or shocks not included in the dictionary retain their default names. The renaming applies to all plot elements including legends, axis labels, and tables.
Verbose Output
The verbose argument (default: false, type: Bool), when true, enables verbose output related to solving the model
plot_fevd(Smets_Wouters_2007_linear,
verbose = true)The code outputs information about solving the steady state blocks. When parameters change, the first-order solution is recomputed; otherwise, it uses the cached solution:
plot_fevd(Smets_Wouters_2007_linear,
parameters = :z_eg => 1.05,
verbose = true)
# Parameter changes:
# z_eg from 1.5 to 1.05
# New parameters changed the steady state.
# Block: 1, - Solved using previous solution; residual norm: 1.776217186138026e-21
# Block: 2, - Solved using previous solution; residual norm: 6.83217016268833e-19
# Quadratic matrix equation solver previous solution has tolerance: 2.25183977733317e-15Numerical Tolerances
The tol argument (default: Tolerances(), type: Tolerances) defines various tolerances for the algorithm used to solve the model. See the Tolerances documentation for more details: ?Tolerances. The tolerances used by the numerical solvers can be adjusted. The Tolerances object allows setting tolerances for the non-stochastic steady state solver (NSSS), Sylvester equations, Lyapunov equation, and quadratic matrix equation (QME). For example, to set tighter tolerances (this example also changes parameters to force recomputation):
custom_tol = Tolerances(qme_acceptance_tol = 1e-12,
sylvester_acceptance_tol = 1e-12)
plot_fevd(Smets_Wouters_2007_linear,
tol = custom_tol,
parameters = :z_eg => 1.055,
verbose = true)
# Parameter changes:
# z_eg from 1.05 to 1.055
# New parameters changed the steady state.
# Block: 1, - Solved using previous solution; residual norm: 1.776217186138026e-21
# Block: 2, - Solved using previous solution; residual norm: 6.83217016268833e-19
# Quadratic matrix equation solver: schur - converged: true in 0 iterations to tolerance: 2.25183977733317e-15This is useful when higher precision is needed or when the default tolerances are insufficient for convergence. Use this argument for specific needs or when encountering issues with the default solver.
Quadratic Matrix Equation Solver
The quadratic_matrix_equation_algorithm argument (default: :schur, type: Symbol) specifies the algorithm to solve quadratic matrix equation (A * X ^ 2 + B * X + C = 0). Available algorithms: :schur, :doubling The quadratic matrix equation solver is used internally when solving the model to first order. Different algorithms are available. The :schur algorithm is generally faster and more reliable, while :doubling can be more precise in some cases (this example also changes parameters to force recomputation):
plot_fevd(Smets_Wouters_2007_linear,
quadratic_matrix_equation_algorithm = :doubling,
parameters = :z_eg => 1.0555,
verbose = true)
# Parameter changes:
# z_eg from 1.055 to 1.0555
# New parameters changed the steady state.
# Block: 1, - Solved using previous solution; residual norm: 1.776217186138026e-21
# Block: 2, - Solved using previous solution; residual norm: 6.83217016268833e-19
# Quadratic matrix equation solver previous solution has tolerance: 2.25183977733317e-15For most use cases, the default :schur algorithm is recommended. Use this argument for specific needs or when encountering issues with the default solver.
